Pull rod clamps

  • Model: GRIP-LM
  • Size: O.D φ304-φ762mm
  • Sealing: EPDM, NBR, VITON, SILICONE.
  • SS quality: AISI304, AISI316L, AISI316TI.
  • Technical Parameter:GRIP-LM 【VIEW】

    PRODUCT DETAILS

    The GRIP-LM pipe coupling including three to four pull rods which can effectively reduce the axial pull strength of pipes. The perfect combination of pull rods and coupling greatly lessen vibration, lower noise as well as provide ideal compensation. Easy and quick installation make GRIP-LM a reliable choice for you.

    Suitable for pipes O.D φ304-φ762mm

    GRIP-LM only can be used on metal pipes.

    GRIP-LM Technical parameters

    Pipe outside diameter Clamping range Working pressure Product O.D. Width Distance between sealing slips Setting gap between pipe ends Torque rate Bolt
    O.D. Min-Max  Picture 1 Picture 2 Φ D B C without strip insert with strip insert
    (mm) (In.) (mm) (bar) (bar) (mm)  (mm)  (mm) (mm) (mm) (Nm) M
    180 7.087 166-171 16 30 202 142 75 10~25 40 50
    200 7.874 198-202 16 30 222 142 75 10~25 40 50
    219.1 8.626 216-222 16 30 249.1 142 75 10~25 40 60
    250 9.843 247-253 16 25 280 142 75 10~25 40 60
    267 10.512 264-270 16 25 297 142 75 10~25 40 60
    273 10.748 270-276 16 25 303 142 75 10~25 40 60
    304 11.969 301-307 10 20 334 142 75 10~25 40 80 M12×2
    323.9 12.752 320-327 10 20 353 142 75 10~25 40 80
    355.6 14.000 352-359 8.5 16 385.6 142 75 10~25 40 80
    377 14.843 375-379 8.5 16 407 142 75 10~25 40 80
    406.4 16.000 402-411 7.5 16 436 142 75 10~25 40 80
    457.2 18.000 452-462 6.5 16 487 142 75 10~25 40 80
    508 20.000 503-513 6 12 538 142 75 10~25 40 120 M16*2
    558.8 22.000 554-564 5.5 10 588.8 142 75 10~25 40 160
    609.6 24.000 605-615 5 10 639.6 142 75 10~25 40 160
    711.2 28.000 708-715 4 5 741.2 142 75 10~25 40 160
    762 30.000 758-766 4 5 792 142 75 10~25 40 160

    GRIP-LM Material Selection

                           Material                     Components                  V1 V2 V3 V4 V5 V6
    Casing  AISI 304 AISI 316L AISI 316TI AISI 316L AISI 316TI AISI 304
    Bolts  AISI 304 AISI 316L AISI 316L AISI 304 AISI 304 AISI 4135
    Bars AISI 304 AISI 316L AISI 316L AISI 304 AISI 304 AISI 4135
    Anchoring ring
    Strip insert (optional) AISI 301 AISI 301 AISI 301 AISI 301 AISI 301

    Material of rubber gasket

    Material of seal Media Temperature range
    EPDM All quality of waters,waste water, air, solids and chemical products -30℃ up to+120℃
    NBR Water,gas, oil, fuel and other hydrocanbons -30℃upto+120℃
    MVQ High temperature liquid, oxygen, ozone, water and so on -70℃ up to+260℃
    FPM/FKM Ozone, oxygen, acids,gas, oil and fuel (only with strip insert) 95℃up to+300℃

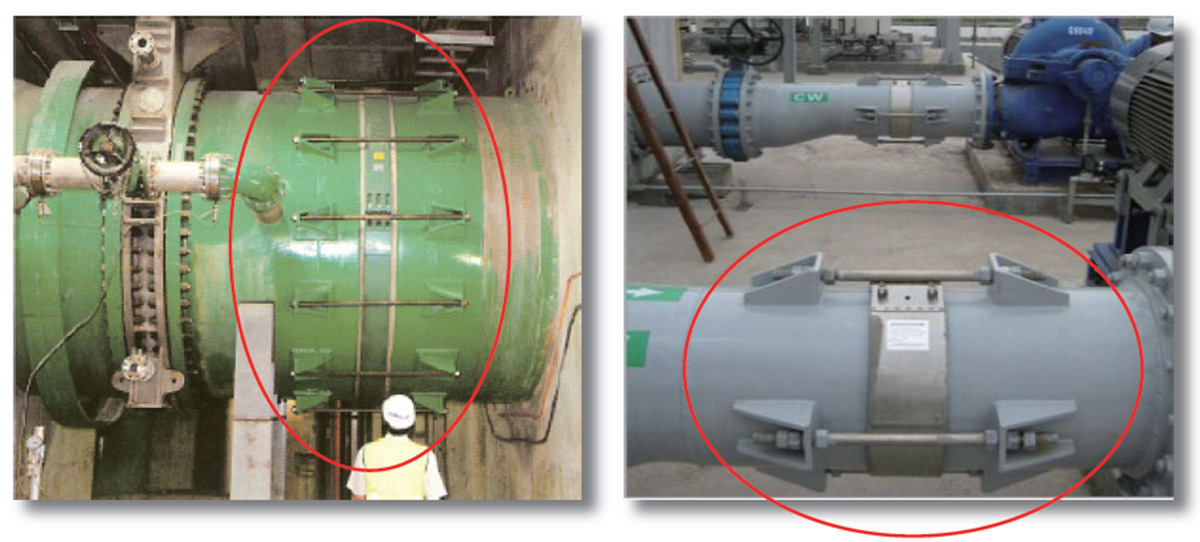

    GRIP-LM is the deformation of G type, based on GRIP-G to improve better performance of GRIP-G for large pipes outside diameters above 300mm, deleted two anchoring and added three pull rods, which can effectively reduce the axial pull strength of pipes.

    The perfect combination of pull rods and couplings greatly lessen vibration, lower noise as well as provide ideal compensation.
